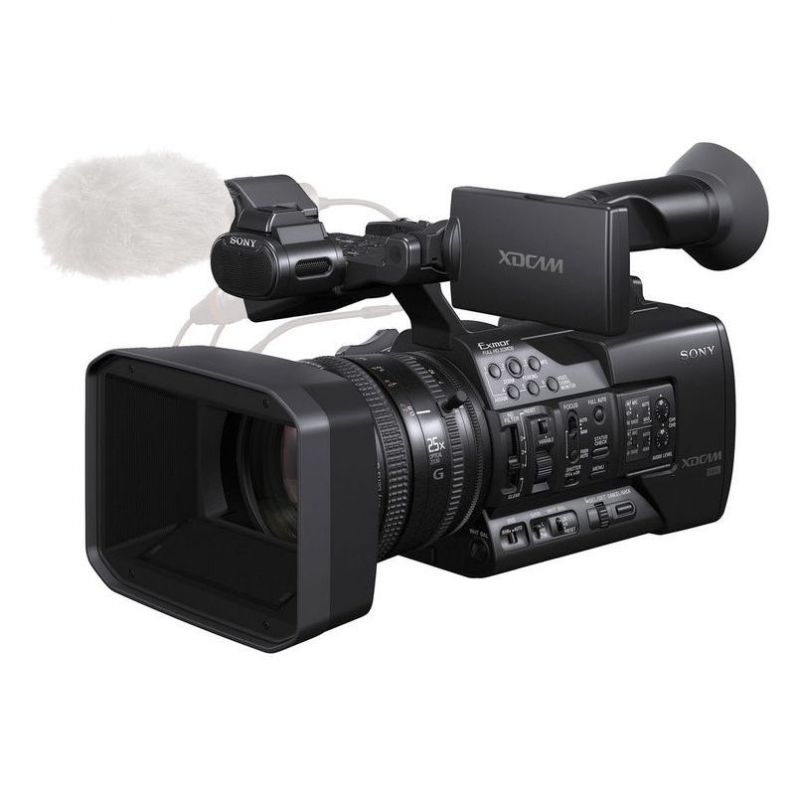

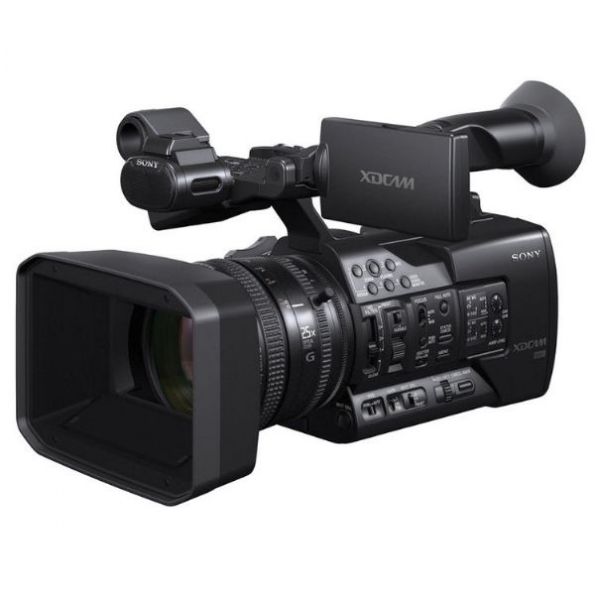

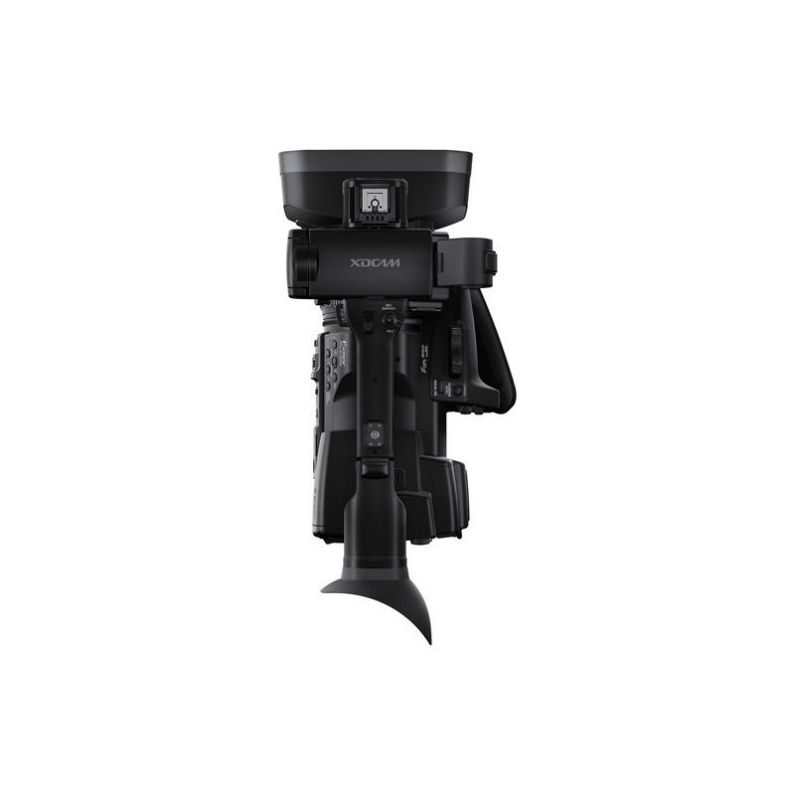

The Sony PXW-X180 three 1/3" type Exmor CMOS sensors camcorder records Full HD XAVC Intra and XAVC Long GOP, as well as MPEG HD 422 50 Mbps, MPEG HD 420 35 Mbps, AVCHD and DV, making it ideal for a wide range of applications from education/videography to news and broadcast production. As the successor to the HVR-Z7E, HXR-NX5E and PMW-150, the PXW-X180 has a lot of attractive features, including dual SxS memory card slots, proxy recording on SD card, a G Series fixed 25x HD zoom lens with 26mm wide angle and variable ND filter, that provides four conventional mechanical 4 ND filter positions or a linear switch dial for more control in changing light conditions. The camcorder also has wireless functions and NFC (Near Field Communication) capabilities. Three 1/3" type Exmor CMOS Full HD sensors for a wide range of shooting conditions The PXW-X180 incorporates three 1/3" type Full-HD Exmor CMOS sensors to achieve high resolution, high sensitivity, low noise, and wide dynamic range. The sensor has 2 million effective pixels and achieves full HD 1920 x1080 shooting without pixel interpolation, enhancing shooting under severe lighting conditions and providing more freedom of creative expression. 25x professional HD zoom lens with three independent rings with end-stop and large focal length The PXW-X180 is equipped with a G Series fixed 25x zoom lens with 26mm wide-angle. Due to a quick electric zoom function, the change of shooting from wide-angle to tele-angle can be made quickly. The lens has three independent control rings with end-stop, which means focus, zoom and iris can be manually controlled, making for better and faster adjustment. High quality XAVC Intra and XAVC Long GOP recordings The PXW-X180 supports not only MPEG HD 422 50 Mbps in MXF (Material eXchange Format), which is widely accepted by major broadcasters worldwide, but also XAVC Intra and XAVC Long GOP codecs. XAVC technology is based on the H.264 standard, which provides an exceptional performance compression technology. XAVC Intra (frame) compression means that every frame is encoded independent of the other frames providing a better quality picture, without compromise. With a Long GOP codec, only certain frames are encoded individually. This allows the codec to squeeze the video into a much smaller bit rate than Intra technology. The main benefit is faster ingest and editing. XAVC Long GOP files also require less storage space than XAVC Intra files, providing budget savings on recording media. The XAVC codec adopts 10 bit sampling for high definition recording with rich tonal expression. The bite rate of XAVC recording is 111 or 112 Mbps at 1080/59.94i or 50i and 89, or 112 Mbps at 1080/23.98P or 25p. The high bit rate gives a better quality picture. Switchable recordings for greater flexibility As well as shooting at XAVC HD, MPEG HD 422 50 Mbps and MPEG HD 420 35 Mbps, the camcorder also supports DVCAM at 25 Mbps in MXF file format and AVCHD in MTS file format, which is compatible with NXCAM camcorders. MPEG HD 422 gives a high quality image with more detailed color reproduction, as well as being ideal for chroma keying. It is also compatible with other XDCAM HD 422 and NXCAM camcorders, including the PMW-500, thePMW-200, HXR-NX3/VG1 and many others, which streamlines workflow and reduces time in the edit. High-quality MPEG HD422 50 Mbps is fully compliant with the latest EBU recommendations for long-form broadcast production and is widely accepted in broadcasting stations and production houses. This recording capability makes the PXW-X180 ideal for a wide range of different applications, including news gathering and documentary production. Wi-Fi/NFC (Near Field Communication) with Content Browser Mobile By attaching the supplied dongle IFU-WLM3, the PXW-X180 can be remotely controlled from a smartphone or tablet computer (iOS 4.3 through 7.0 or Android 2.3 through 4.3) via a Wi-Fi connection, and recorded video files can be transferred from camcorder to smartphone in MP4 format.* One-touch authentication is also possible with smartphones that offer NFC connectivity. The required Content Browser Mobile mobile smartphone application can be downloaded from the Google Play Store or App Store. * Wi-Fi operation cannot be guaranteed with all smartphones and tablet computers. Proxy recording on SD card The PXW-X180 can record proxy video H.264 on an SD card. The resolution and bit rate of proxy video can be changed for a more flexible workflow. The proxy files are recorded in MP4 format for better compatibility with broadcast systems. The lightweight proxy video files are generated separately from the main line recording and recorded to SD cards for quick sharing of content over low-bandwidth mobile networks. Dual SxS media slots, Simul or Relay recording, and independent record control The PXW-X180 is equipped
Imaging Device
3 x 1/3" type Exmor CMOS sensor
Effective Pixels (H x V)
1920 x 1080
Sensitivity
F9 (typical) (1920 x 1080/59.94i mode)
F10 (typical) (1920 x 1080/50i mode)
S/N Ratio
60 dB (Y) (typical)
Shutter Speed
1/32 to 1/2000 sec
White Balance
Present (3200K), A, B
GPS
Yes
Wi-Fi
Yes
NFC
Yes
Built-In ND Filters
Clear, 1/4 to 1/128 variable
Lens
Type
Fixed
Zoom Ratio
25x (optical), servo/manual
Focal Length
3.7 to 92.5 mm
35mm Equivalent Focal Length
26 to 650 mm
Aperture
f/1.6 to f/11, and closed
Focus
Autofocus / manual focus selectable
Minimum Focus Distance
Wide: 0.39" (10 mm)
Tele: 31.5" (800 mm)
Image Stabilizer
ON/OFF/ACTIVE selectable, shift lens
Filter Diameter
82 mm
Recording
Video Recording Format
XAVC-Intra
1920x1080 59.94i: 111 Mbps max
1920x1080 50i: 112 Mbps max
1920x1080 29.97p: 111 Mbps max
1920x1080 25p: 112 Mbps max
1920x1080 23.98p: 89 Mbps max
1280x720 59.94p: 111 Mbps max
1280x720 50p: 112 Mbps max
XAVC-Long
1920x1080 59.94i, 50i: 50/35/25 Mbps max
1920x1080 59.94p, 50p, 29.97p, 25p, 23.98p: 50/35 Mbps max
1280x720 59.94p, 50p: 50 Mbps max
MPEG HD422
1920x1080 59.94i, 50i, 29.97p, 25p, 23.98p: 50 Mbps max
1280x720 59.94p, 50p, 29.97p, 25p, 23.98p: 50 Mbps max
MPEG HD420
1920x1080 59.94i, 50i, 29.97p, 25p, 23.98p: 35Mbps max
1440x1080 59.94i, 50i: 35 Mbps max
1280x720 59.94p, 50p: 35Mbps max
AVCHD
1920x1080 59.94p, 50p: 28 Mbps max
1920x1080 59.94i, 50i, 29.97p, 25p, 23.98p: 24 Mbps max
1280x720 59.94p, 50p: 24 Mbps max
1920x1080p: Frame rate selectable 1 to 60p (depends on Recording Format)
1280x720: 1 to 120p (depends on Recording Format)
Angle of view becomes smaller over 60fps
