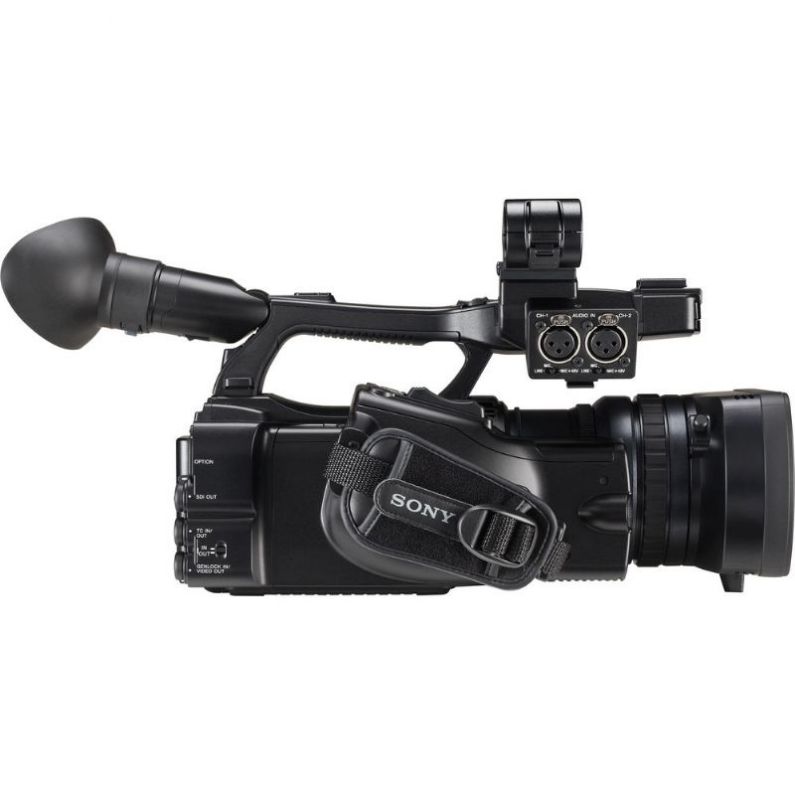

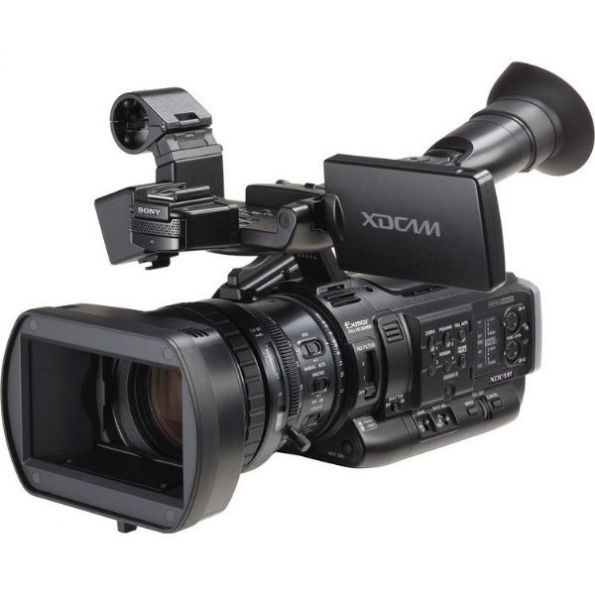

Sony PMW-200 XDCAM HD422 Handheld Camcorder

The Sony PMW-200 XDCAM HD422 Camcorder is the successor to Sony's well respected PMW-EX1/R camcorder. It supports the 50 Mbps MPEG HD422 codec and MXF recording. The PMW-200 is equipped with three 1/2" Full HD 1920 x 1080 Exmor CMOS sensors, which support 1000 TV1 high resolution, F11 (2000 lx) high sensitivity, low 56dB noise and a wide dynamic range. It works for SD/HD recording and features a 14x zoom lens with a unique focus ring mechanism. The camera is equipped with dual ExpressCard SxS memory card slots and supports up to four hours of 50 Mbps MPEG HD422 recording. It supports both UDF and FAT file format modes and is switchable between NTSC, NTSC(J), and PAL areas. Other functions include Slow/Quick motion playback, focus magnification, slow shutter, shutter angle settings and picture cache recording. The PMW-200 features four-channel audio recording, as well as HD/SDI, HDMI, and composite/HD-Y outputs. There's six Gamma settings, four HyperGamma settings and a USB port for using the camcorder as a card reader. Three 1/2" Full HD Exmor 3CMOS sensors50 Mbps MPEG HD422 recording as MXF files (UDF mode only)Multi-region support: switchable between NTSC/PAL areaSD recording and playback (DVCAM) standard14x fixed zoom lens (servo/manual switchable) with unique focus ring mechanismTwo ExpressCard SxS memory card slotsRecord up to four hours or 50 Mbps MPEG HD422 in camcorder using two 64 GB SxS-1A memory cards (not included)UDF (Professional Disc compatible) or FAT (XDCAM EX compatible) file format mode shooting in order to have similar high-res files and workflows with existing Professional Disc and XDCAM EX camcordersLow power consumptionCompact and lightweight design for better mobility3.5" (8.9 cm) color LCD display with 16:9 aspect ratioSlow and Quick motionFocus Magnification for focus assistanceShutter Angle SettingsPicture Cache RecordingHigh-quality four-channel audio recordingHD/SD-SDI, HDMI, and composite/HD-Y outputUSB interface for connecting camcorder as card readerSix Standard Gamma settings and four HyperGamma settings� � � � � � � � � � � �

Camera Section
Imaging Device	3 x 1/2" Exmor CMOS Sensors
Effective Picture Elements	1920 x 1080 (HxV)
Slow Shutter	2, 3, 4, 5, 6, 7, 8, 16, 32 and 64-frame accumulation
Sensitivity	2000 lx, 89.9% reflectance (F11 typical)
Gain Selection	-3, 0, 3, 6, 9, 12 and 18dB

Recording
Video Recording Format	UDF HD Mode NTSC Area/NTSC(J) Area: HD422 50 - 1080/59.94i HD420 HQ - 1080/59.94i HD422 50 - 1080/29.97p HD420 HQ - 1080/29.97p HD422 50 - 1080/23.98p HD420 HQ - 1080/23.98p HD422 50 - 720/59.94p HD420 HQ - 720/59.94p HD422 50 - 720/29.97p HD422 50 - 720/23.98p HD420 HQ - 720/23.98p PAL Area: HD422 50 - 1080/50i HD420 HQ - 1080/50i HD422 50 - 1080/25p HD420 HQ - 1080/25p HD422 50 - 720/50p HD420 HQ - 720/50p HD422 50 - 720/25p UDF SD Mode NTSC Area/NTSC(J) Area: DVCAM59.94i SQ DVCAM59.94i EC DVCAM29.97p SQ DVCAM29.97p EC PAL Area: DVCAM59.94i SQ DVCAM59.94i EC DVCAM29.97p SQ DVCAM29.97P EC FAT HD Mode NTSC Area/NTSC(J) Area: HQ 1920/59.94i HQ 1440/59.94i SP 1440/59.94i HQ 1920/29.97p HQ 1440/29.97p HQ 1920/23.98p HQ 1440/23.98p SP 1440/23.98p HQ 1280/59.94p HQ 1280/29.97p HQ 1280/23.98p PAL Area: HQ 1920/50i HQ 1440/50i SP 1440/50i HQ 1920/25p HQ 1440/25p HQ 1280/50p HQ 1280/25p FAT SD Mode NTSC Area/NTSC(J) Area: HQ 1920/50i HQ 1440/50i SP 1440/50i HQ 1920/25p HQ 1440/25p HQ 1280/50p HQ 1280/25p PAL Area: DVCAM50i SQ DVCAM50i EC DVCAM25p SQ DVCAM25p EC
Audio Recording	UDF Mode (HD Recording) MPEG HD422 (MPEG-2 422P@HL): 4 channels, 48 kHz (24-bit LPCM) MPEG HD420 (1440 x 1080, MPEG-2 MP@HL): 4 channels, 48 kHz (16-bit LPCM) UDF Mode (SD Recording) DVCAM: 4 channels, 48 kHz (16-bit) FAT Mode (HD Recording) MPEG HD420 (1920 x 1080, MPEG-2 MP@HL): 2 channels, 48 kHz (16-bit LPCM) Fat Mode (SD Recording) DVCAM: 2 channels, 48 kHz (16-bit LPCM)
Recording Media	SxS Express 34 Cards (SBP-8/16/32GB)
Recording Time (UDF Mode)	50 Mbps MPEG HD422 (MPEG-2 422P@HL) Approx. 120 min with 64 GB SxS memory card Approx. 60 min with 32 GB SxS memory card Approx. 30 min with 16 GB SxS memory card   35 Mbps VBR, HQ Mode MPEG HD420 (1440x1080, MPEG-2 MP@HL)Approx. 180 min with 64 GB SxS memory card Approx. 90 min with 32 GB SxS memory card Approx. 45 min with 16 GB SxS memory card   25 Mbps DVCAM Approx. 220 min with 64 GB SxS memory card Approx. 110 min with 32 GB SxS memory card Approx. 55 min with 16 GB SxS memory card
Recording Time (FAT Mode)	35 Mbps VBR, HQ Mode - MPEG HD420 (MPEG-2 MP@HL) Approx. 200 min with 64 GB SxS memory card Approx. 100 min with 32 GB SxS memory card Approx. 50 min with 16 GB SxS memory card   25 Mbps CBR, SP Mode - MPEG HD 420 (MPEG-2 MP@HL-14) Approx. 280 min with 64 GB SxS memory card Approx. 140 min with 32 GB SxS memory card Approx. 70 min with 16 GB SxS memory card   25 Mbps DVCAM Approx. 220 min with 64 GB SxS memory card Approx. 110 min with 32 GB SxS memory card Approx. 55 min with 16 GB SxS memory card

Inputs/Outputs
Genlock Input	1 x BNC (switchable to composite video out), 1.0 Vp-p, 75 ohms
TC Input	1 x BNC (switchable to TC Out), 0.5-1.8 Vp-p, 10 kohms
Audio Input	2 x 3-pin female XLR (line, mic, mic +48 V selectable)
SDI Output	1 x BNC (HD/SD switchable)
HDMI Output	1 x Type A
Composite Video Output	1 x BNC (switchable to Genlock In), HD-Y / composite switchable, 1.0 Vp-p, 75 ohms
Audio Output	1 x A/V output jack (10-pin connector)
TC Output	1 x BNC (switchable to TC In), 1.0 Vp-p, 10 kohms
Headphone Jack	1 x 3.5 mm mini-jack (stereo)
Speaker	1 x monaural 250 mW monitor speaker
Microphone	1 x omni-directional stereo electret condenser microphone
DV I/O (i.LINK)	1 x 4-pin IEEE-1394 HDV (HDV 1080i) / DV I/O, S400
USB Port	1 x USB 2.0 (device), mini-B type

Lens
Zoom Ratio	14x (optical) (servo/manual)
Focal Length	5.8 - 81.2 mm
Aperture	f/1.9 - f/16 (auto/manual selectable)
Focus	AF/MF/Full MF selectable Macro

Monitoring
Viewfinder	Electric Viewfinder (EVF) Approx 1.2 million pixels 852 x 3 x 480 (HxRGBxV)
LCD Monitor	3.5" (8.9 cm) color LCD 852 x 3 x 480 (HxRGBxV) Aspect Ratio: 16:9

General Specifications
Media Type	2 x ExpressCard/34 slots
Power Requirements	DC 12 V
Power Consumption	13 W (runs up to 4 hrs using BP-U60 battery)
Operating Temperature	32 to 104F (0 to 40C)
Storage Temperature	-4 to 140F (20 to 60C)
Humidity	10 to 90% (relative humidity)
Dimensions (WxHxD)	6.9 x 6.5 x 16.5" (172 x 164 x 419 mm)
