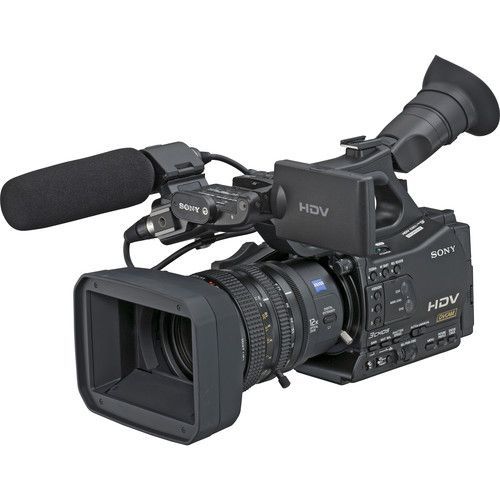

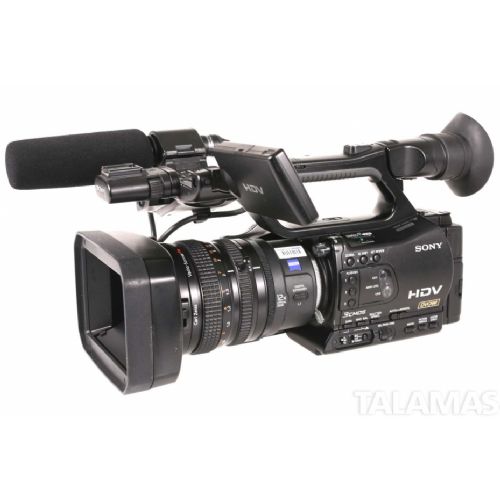

TheSony HVR-Z7Uis an HDV handheld camcorder featuring a lens mount. Previously unheard of for such a compact unit, the HVR-Z7U incorporates the convenience of a handheld camcorder with the flexibility of larger ENG cameras.
The camera can also record directly to compact flash cards, via the camera's supplied memory recording unit. Combined with Sony's entire family of HDV products, the HVR-Z7U is a great camcorder for almost any production, including documentaries, news, low-budget movies, music videos, and industrials.
Interchangeable Lenses
Users get the best of both worlds with this innovative camcorder. The HVR-Z7U's unique design is the first of its kind; a handheld camera with the interchangeable lens capability. Whether you are filming a movie or shooting a documentary, the HVR-Z7U has it covered.
ClearVID 3CMOS Technology
Sony's ClearVID sensors are positioned at a 45 angle. Since each pixel is positioned at this angle the result is far clearer diagonal lines. Images will appear crisper, without the apparent "jaggies" that often plague video signals.
Record to Compact Flash
The camera comes with an attachable recording unit, allowing users to record HDV and DV to CompactFlash cards. With cards getting larger and larger in capacity, the ability to take advantage of tapeless workflow while still using cheap media is a welcome addition.
High Definition on MiniDV Tapes with HDV
The HDV format, used in the HVR-Z7U allows high definition recording on standard MiniDV tapes. This is accomplished by using the very popular MPEG-2 compression technique used in many applications, including DVDs and satellite television.
24p Capability
In 24p mode, images from the CMOS can be 2:3 pulldown-converted and recorded onto tape in the standard 60i HDV format. The tape can then be played back or edited using an ordinary HDV system. True 24p editing can be achieved by uploading 2:3 pulldown-converted images via an i.LINK FireWire interface to a compatible non-linear editing system. The resultant images resemble the visual motion of film!
HDMI Output
Many consumer products are adopting High Definition Media Interface (HDMI) connections for transmitting uncompressed digital HD video signals. Sony has upped the ante by incorporating this into the already extensive array of video output choices on the HVR-Z7U. Connect the camera to any HDTV via this interface and view all your footage the way it was meant to be seen: purely digital!
Signal System | HDV: 1080/60i, 1080/24p, 1080/30p DVCAM/DV: 480/60i (NTSC) |
Image Device | 1/3" 3CMOS Exmor Sensor system |
Lens | Carl Zeiss Vario-Sonnar T* Zoom Lens, 12x (Optical) f = 4.4-52.8mm f = 32-384mm at 16:9 mode f = 39.5-47.4mm (4:3 mode) filter diameter: 72mm1 |
Signal-to-Noise Ratio | Not Specified by Manufacturer |
Horizontal Resolution | 1080 Lines |
Sensitivity | Not Specified By Manufacturer |
Minimum Illumination | 1.5 lux (Auto Gain, Auto Iris, 1/30 Shutter) |
Vertical Smear | Not Specified by Manufacturer |
Built-in Filters | Clear, 1/4, 1/16, 1/64 |
LCD Monitor | 3.2", 16:9 Aspect Ratio, 1 MegaPixel Xtrafine LCD |
Viewfinder | 0.45", 16:9 Aspect Ratio, 852 x 480 Resolution |
Scan Matching | Yes |
Memory Card Slot | MemoryStick Duo Media |
Shutter Speed Range | Auto: 1/60-1/2000 Manual 60i/30p: 1/4-1/10000 24p: 1/3 - 1/10000 |
Gain Selection | -6, -3, 0, 3, 6, 9, 12, 15, 18 dB |
VTR | |
---|---|
Tape Format | HDV Record and Play DVCAM Record and Play DV Record and Play |
Tape Speed | HDV: 18.8mm/s DVCAM: 28.2mm/s DV SP Mode: 18.8mm/s |
Signal-to-Noise Ratio | Not Specified by Manufacturer |
Maximum Recording Time | HDV: 63 min (with PHDVM-63DM Cassette) DVCAM: 41 min (with PHDVM-63DM Cassette) DV: 63 min (with PHDVM-63DM Cassette) |
Audio | |
---|---|
Audio Dynamic Range | Not Specified by Manufacturer |
Audio Signal Format | HDV MPEG1 Audio Layer II DVCAM/DV 16-bit/48kHz 2 Channel Mode 12-bit/32kHz 4 Channel Mode |
Audio Frequency Response | 20Hz to 20kHz |
Signal to Noise Ratio | Not Specified by Manufacturer |
General | |
---|---|
Input and Output Connectors | Composite: 10-Pin Video/Audio (x1 Output) Component: Special Connector (x1 Output) HDMI (x1 Output) FireWire/i.LINK: 6-Pin (x1 Input, x1 Output) XLR Audio: XLR 3-Pin Female, 2-Channel Headphone: Stereo Mini-Jack LANC: 2.5mm Mini-mini Jack |
Power Requirements | Battery Pack: 7.2VDC AC Adapter: 8.4VDC |
Power Consumption | HDV: 7.2W DVCAM/DV: 6.9W |
Operating Temperature | 32-104F (0-40C) |
Dimensions (WxHxD) | 6.9 x 7.8 x 17.3" (17.6 x 19.9 x 43.9 cm) |
Weight | 5.3 lbs (2.4 kg) |
